Block Manager

Abstract

The block manager is a key component of full nodes and is responsible for block production or block syncing depending on the node type: sequencer or non-sequencer. Block syncing in this context includes retrieving the published blocks from the network (P2P network or DA network), validating them to raise fraud proofs upon validation failure, updating the state, and storing the validated blocks. A full node invokes multiple block manager functionalities in parallel, such as:

• Block Production (only for sequencer full nodes)
• Block Publication to DA network
• Block Retrieval from DA network
• Block Sync Service
• Block Publication to P2P network
• Block Retrieval from P2P network
• State Update after Block Retrieval

Component Architecture Overview

Protocol/Component Description

The block manager is initialized using several parameters as defined below:

Name	Type	Description
signing key	crypto.PrivKey	used for signing blocks and data after creation
config	config.BlockManagerConfig	block manager configurations (see config options below)
genesis	*cmtypes.GenesisDoc	initialize the block manager with genesis state (genesis configuration defined in config/genesis.json file under the app directory)
store	store.Store	local datastore for storing chain blocks and states (default local store path is $db_dir/evolve and db_dir specified in the config.yaml file under the app directory)
mempool, proxyapp, eventbus	mempool.Mempool, proxy.AppConnConsensus, *cmtypes.EventBus	for initializing the executor (state transition function). mempool is also used in the manager to check for availability of transactions for lazy block production
dalc	da.DAClient	the data availability light client used to submit and retrieve blocks to DA network
headerStore	*goheaderstore.Store[*types.SignedHeader]	to store and retrieve block headers gossiped over the P2P network
dataStore	*goheaderstore.Store[*types.SignedData]	to store and retrieve block data gossiped over the P2P network
signaturePayloadProvider	types.SignaturePayloadProvider	optional custom provider for header signature payloads
sequencer	core.Sequencer	used to retrieve batches of transactions from the sequencing layer
reaper	*Reaper	component that periodically retrieves transactions from the executor and submits them to the sequencer

Block manager configuration options:

Name	Type	Description
BlockTime	time.Duration	time interval used for block production and block retrieval from block store (defaultBlockTime)
DABlockTime	time.Duration	time interval used for both block publication to DA network and block retrieval from DA network (defaultDABlockTime)
DAStartHeight	uint64	block retrieval from DA network starts from this height
LazyBlockInterval	time.Duration	time interval used for block production in lazy aggregator mode even when there are no transactions (defaultLazyBlockTime)
LazyMode	bool	when set to true, enables lazy aggregation mode which produces blocks only when transactions are available or at LazyBlockInterval intervals
MaxPendingHeadersAndData	uint64	maximum number of pending headers and data blocks before pausing block production (default: 100)
GasPrice	float64	gas price for DA submissions (-1 for automatic/default)
GasMultiplier	float64	multiplier for gas price on DA submission retries (default: 1.3)
Namespace	da.Namespace	DA namespace ID for block submissions

Block Production

When the full node is operating as a sequencer (aka aggregator), the block manager runs the block production logic. There are two modes of block production, which can be specified in the block manager configurations: normal and lazy.

In normal mode, the block manager runs a timer, which is set to the BlockTime configuration parameter, and continuously produces blocks at BlockTime intervals.

In lazy mode, the block manager implements a dual timer mechanism:

1. A blockTimer that triggers block production at regular intervals when transactions are available
2. A lazyTimer that ensures blocks are produced at LazyBlockInterval intervals even during periods of inactivity

The block manager starts building a block when any transaction becomes available in the mempool via a notification channel (txNotifyCh). When the Reaper detects new transactions, it calls Manager.NotifyNewTransactions(), which performs a non-blocking signal on this channel. The block manager also produces empty blocks at regular intervals to maintain consistency with the DA layer, ensuring a 1:1 mapping between DA layer blocks and execution layer blocks.

The Reaper component periodically retrieves transactions from the executor and submits them to the sequencer. It runs independently and notifies the block manager when new transactions are available, enabling responsive block production in lazy mode.

Building the Block

The block manager of the sequencer nodes performs the following steps to produce a block:

• Retrieve a batch of transactions using retrieveBatch() which interfaces with the sequencer
• Call CreateBlock using executor with the retrieved transactions
• Create separate header and data structures from the block
• Sign the header using signing key to generate SignedHeader
• Sign the data using signing key to generate SignedData (if transactions exist)
• Call ApplyBlock using executor to generate an updated state
• Save the block, validators, and updated state to local store
• Add the newly generated header to pendingHeaders queue
• Add the newly generated data to pendingData queue (if not empty)
• Publish the newly generated header and data to channels to notify other components of the sequencer node (such as block and header gossip)

Note: When no transactions are available, the block manager creates blocks with empty data using a special dataHashForEmptyTxs marker. The header and data separation architecture allows headers and data to be submitted and retrieved independently from the DA layer.

Block Publication to DA Network

The block manager of the sequencer full nodes implements separate submission loops for headers and data, both operating at DABlockTime intervals:

Header Submission Loop

The HeaderSubmissionLoop manages the submission of signed headers to the DA network:

• Retrieves pending headers from the pendingHeaders queue
• Marshals headers to protobuf format
• Submits to DA using the generic submitToDA helper
• On success, removes submitted headers from the pending queue
• On failure, headers remain in the queue for retry

Data Submission Loop

The DataSubmissionLoop manages the submission of signed data to the DA network:

• Retrieves pending data from the pendingData queue
• Marshals data to protobuf format
• Submits to DA using the generic submitToDA helper
• On success, removes submitted data from the pending queue
• On failure, data remains in the queue for retry

Generic Submission Logic

Both loops use a shared submitToDA function that provides:

• Retry logic with maxSubmitAttempts attempts
• Exponential backoff starting at initialBackoff, doubling each attempt, capped at DABlockTime
• Gas price management with GasMultiplier applied on retries
• Comprehensive metrics tracking for attempts, successes, and failures
• Context-aware cancellation support

The manager enforces a limit on pending headers and data through MaxPendingHeadersAndData configuration. When this limit is reached, block production pauses to prevent unbounded growth of the pending queues.

Block Retrieval from DA Network

The block manager implements a RetrieveLoop that regularly pulls headers and data from the DA network:

Retrieval Process

1. Height Management: Starts from the latest of:

   • DA height from the last state in local store
   • DAStartHeight configuration parameter
   • Maintains and increments daHeight counter after successful retrievals

2. Retrieval Mechanism:

   • Executes at DABlockTime intervals
   • Makes GetHeightPair(daHeight) request to get both header and data
   • Handles three possible outcomes:
     • Success: Process retrieved header and data
     • NotFound: No chain block at this DA height (normal case)
     • Error: Retry with backoff

3. Error Handling:

   • Implements retry logic with 100ms delay between attempts
   • After 10 retries, logs error and stalls retrieval
   • Does not increment daHeight on persistent errors

4. Processing Retrieved Blocks:

   • Validates header and data signatures
   • Checks sequencer information
   • Marks blocks as DA included in caches
   • Sends to sync goroutine for state update
   • Successful processing triggers immediate next retrieval without waiting for timer

Header and Data Caching

The retrieval system uses persistent caches for both headers and data:

• Prevents duplicate processing
• Tracks DA inclusion status
• Supports out-of-order block arrival
• Enables efficient sync from P2P and DA sources

For more details on DA integration, see the Data Availability specification.

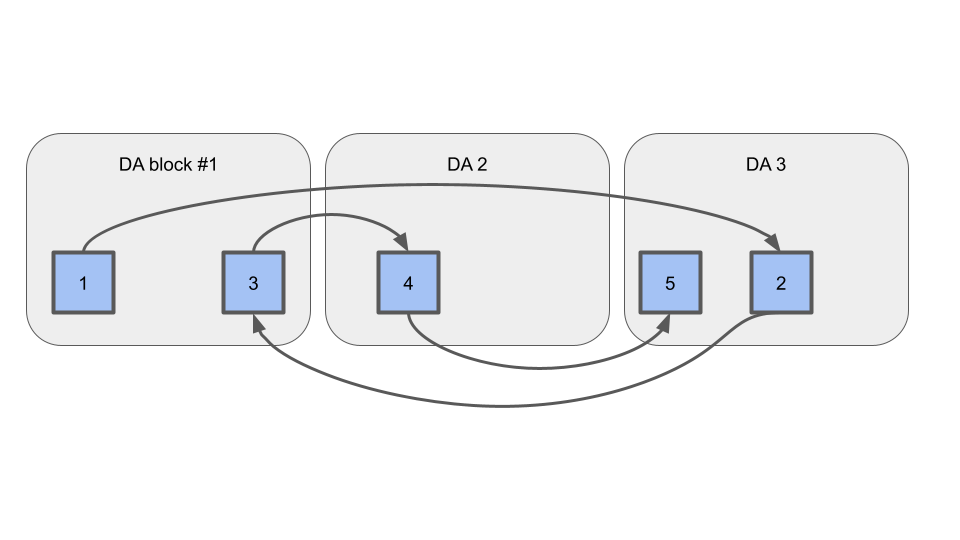

Out-of-Order Chain Blocks on DA

Evolve should support blocks arriving out-of-order on DA, like so:

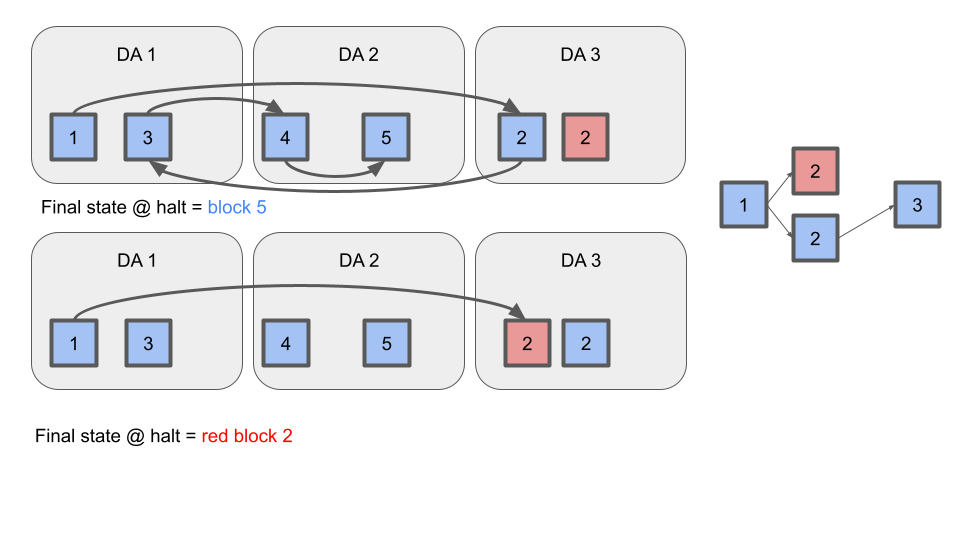

Termination Condition

If the sequencer double-signs two blocks at the same height, evidence of the fault should be posted to DA. Evolve full nodes should process the longest valid chain up to the height of the fault evidence, and terminate. See diagram:

Block Sync Service

The block sync service manages the synchronization of headers and data through separate stores and channels:

Architecture

• Header Store: Uses goheader.Store[*types.SignedHeader] for header management
• Data Store: Uses goheader.Store[*types.SignedData] for data management
• Separation of Concerns: Headers and data are handled independently, supporting the header/data separation architecture

Synchronization Flow

1. Header Sync: Headers created by the sequencer are sent to the header store for P2P gossip
2. Data Sync: Data blocks are sent to the data store for P2P gossip
3. Cache Integration: Both header and data caches track seen items to prevent duplicates
4. DA Inclusion Tracking: Separate tracking for header and data DA inclusion status

Block Publication to P2P network

The sequencer publishes headers and data separately to the P2P network:

Header Publication

• Headers are sent through the header broadcast channel
• Written to the header store for P2P gossip
• Broadcast to network peers via header sync service

Data Publication

• Data blocks are sent through the data broadcast channel
• Written to the data store for P2P gossip
• Broadcast to network peers via data sync service

Non-sequencer full nodes receive headers and data through the P2P sync service and do not publish blocks themselves.

Block Retrieval from P2P network

Non-sequencer full nodes retrieve headers and data separately from P2P stores:

Header Store Retrieval Loop

The HeaderStoreRetrieveLoop:

• Operates at BlockTime intervals via headerStoreCh signals
• Tracks headerStoreHeight for the last retrieved header
• Retrieves all headers between last height and current store height
• Validates sequencer information using isUsingExpectedSingleSequencer
• Marks headers as "seen" in the header cache
• Sends headers to sync goroutine via headerInCh

Data Store Retrieval Loop

The DataStoreRetrieveLoop:

• Operates at BlockTime intervals via dataStoreCh signals
• Tracks dataStoreHeight for the last retrieved data
• Retrieves all data blocks between last height and current store height
• Validates data signatures using isValidSignedData
• Marks data as "seen" in the data cache
• Sends data to sync goroutine via dataInCh

Soft Confirmations

Headers and data retrieved from P2P are marked as soft confirmed until both:

1. The corresponding header is seen on the DA layer
2. The corresponding data is seen on the DA layer

Once both conditions are met, the block is marked as DA-included.

About Soft Confirmations and DA Inclusions

The block manager retrieves blocks from both the P2P network and the underlying DA network because the blocks are available in the P2P network faster and DA retrieval is slower (e.g., 1 second vs 6 seconds). The blocks retrieved from the P2P network are only marked as soft confirmed until the DA retrieval succeeds on those blocks and they are marked DA-included. DA-included blocks are considered to have a higher level of finality.

DAIncluderLoop: The DAIncluderLoop is responsible for advancing the DAIncludedHeight by:

• Checking if blocks after the current height have both header and data marked as DA-included in caches
• Stopping advancement if either header or data is missing for a height
• Calling SetFinal on the executor when a block becomes DA-included
• Storing the Evolve height to DA height mapping for tracking
• Ensuring only blocks with both header and data present are considered DA-included

State Update after Block Retrieval

The block manager uses a SyncLoop to coordinate state updates from blocks retrieved via P2P or DA networks:

Sync Loop Architecture

The SyncLoop processes headers and data from multiple sources:

• Headers from headerInCh (P2P and DA sources)
• Data from dataInCh (P2P and DA sources)
• Maintains caches to track processed items
• Ensures ordered processing by height

State Update Process

When both header and data are available for a height:

1. Block Reconstruction: Combines header and data into a complete block
2. Validation: Verifies header and data signatures match expectations
3. ApplyBlock:
   • Validates the block against current state
   • Executes transactions
   • Captures validator updates
   • Returns updated state
4. Commit:
   • Persists execution results
   • Updates mempool by removing included transactions
   • Publishes block events
5. Storage:
   • Stores the block, validators, and updated state
   • Updates last state in manager
6. Finalization:
   • When block is DA-included, calls SetFinal on executor
   • Updates DA included height

Message Structure/Communication Format

The communication between the block manager and executor:

• InitChain: initializes the chain state with the given genesis time, initial height, and chain ID using InitChainSync on the executor to obtain initial appHash and initialize the state.
• CreateBlock: prepares a block with transactions from the provided batch data.
• ApplyBlock: validates the block, executes the block (apply transactions), captures validator updates, and returns updated state.
• SetFinal: marks the block as final when both its header and data are confirmed on the DA layer.
• GetTxs: retrieves transactions from the application (used by Reaper component).

The communication with the sequencer:

• GetNextBatch: retrieves the next batch of transactions to include in a block.
• VerifyBatch: validates that a batch came from the expected sequencer.

The communication with DA layer:

• Submit: submits headers or data blobs to the DA network.
• Get: retrieves headers or data blobs from the DA network.
• GetHeightPair: retrieves both header and data at a specific DA height.

Assumptions and Considerations

• The block manager loads the initial state from the local store and uses genesis if not found in the local store, when the node (re)starts.
• The default mode for sequencer nodes is normal (not lazy).
• The sequencer can produce empty blocks.
• In lazy aggregation mode, the block manager maintains consistency with the DA layer by producing empty blocks at regular intervals, ensuring a 1:1 mapping between DA layer blocks and execution layer blocks.
• The lazy aggregation mechanism uses a dual timer approach:
  • A blockTimer that triggers block production when transactions are available
  • A lazyTimer that ensures blocks are produced even during periods of inactivity
• Empty batches are handled differently in lazy mode - instead of discarding them, they are returned with the ErrNoBatch error, allowing the caller to create empty blocks with proper timestamps.
• Transaction notifications from the Reaper to the Manager are handled via a non-blocking notification channel (txNotifyCh) to prevent backpressure.
• The block manager enforces MaxPendingHeadersAndData limit to prevent unbounded growth of pending queues during DA submission issues.
• Headers and data are submitted separately to the DA layer, supporting the header/data separation architecture.
• The block manager uses persistent caches for headers and data to track seen items and DA inclusion status.
• Gas price management includes automatic adjustment with GasMultiplier on DA submission retries.
• The block manager uses persistent storage (disk) when the root_dir and db_path configuration parameters are specified in config.yaml file under the app directory. If these configuration parameters are not specified, the in-memory storage is used, which will not be persistent if the node stops.
• The block manager does not re-apply blocks when they transition from soft confirmed to DA included status. The block is only marked DA included in the caches.
• Header and data stores use separate prefixes for isolation in the underlying database.
• The genesis ChainID is used to create separate PubSubTopIDs for headers and data in go-header.
• Block sync over the P2P network works only when a full node is connected to the P2P network by specifying the initial seeds to connect to via P2PConfig.Seeds configuration parameter when starting the full node.
• Node's context is passed down to all components to support graceful shutdown and cancellation.
• The block manager supports custom signature payload providers for headers, enabling flexible signing schemes.
• The block manager supports the separation of header and data structures in Evolve. This allows for expanding the sequencing scheme beyond single sequencing and enables the use of a decentralized sequencer mode. For detailed information on this architecture, see the Header and Data Separation ADR.
• The block manager processes blocks with a minimal header format, which is designed to eliminate dependency on CometBFT's header format and can be used to produce an execution layer tailored header if needed. For details on this header structure, see the Evolve Minimal Header specification.

Metrics

The block manager exposes comprehensive metrics for monitoring:

Block Production Metrics

• last_block_produced_height: Height of the last produced block
• last_block_produced_time: Timestamp of the last produced block
• aggregation_type: Current aggregation mode (normal/lazy)
• block_size_bytes: Size distribution of produced blocks
• produced_empty_blocks_total: Count of empty blocks produced

DA Metrics

• da_submission_attempts_total: Total DA submission attempts
• da_submission_success_total: Successful DA submissions
• da_submission_failure_total: Failed DA submissions
• da_retrieval_attempts_total: Total DA retrieval attempts
• da_retrieval_success_total: Successful DA retrievals
• da_retrieval_failure_total: Failed DA retrievals
• da_height: Current DA retrieval height
• pending_headers_count: Number of headers pending DA submission
• pending_data_count: Number of data blocks pending DA submission

Sync Metrics

• sync_height: Current sync height
• da_included_height: Height of last DA-included block
• soft_confirmed_height: Height of last soft confirmed block
• header_store_height: Current header store height
• data_store_height: Current data store height

Performance Metrics

• block_production_time: Time to produce a block
• da_submission_time: Time to submit to DA
• state_update_time: Time to apply block and update state
• channel_buffer_usage: Usage of internal channels

Error Metrics

• errors_total: Total errors by type and operation

Implementation

See block-manager

See tutorial for running a multi-node network with both sequencer and non-sequencer full nodes.

References

[1] Go Header

[2] Block Sync

[3] Full Node

[4] Block Manager

[5] Tutorial

[6] Header and Data Separation ADR

[7] Evolve Minimal Header

[8] Data Availability

[9] Lazy Aggregation with DA Layer Consistency ADR
